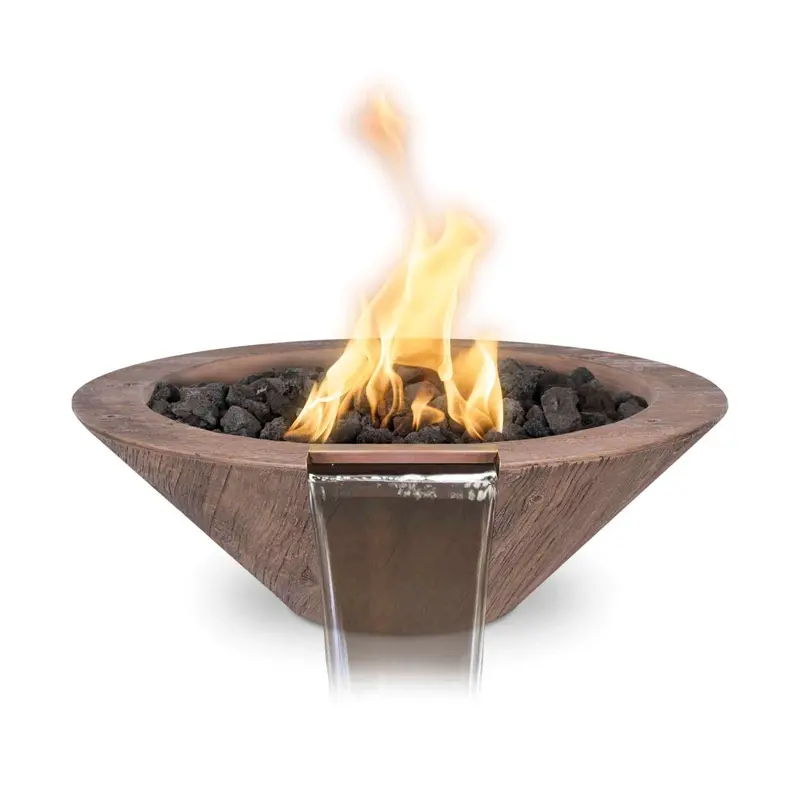

24-Inch Cazo Wood-Grain Fire And Water Bowl – Dual-Function Feature

Description

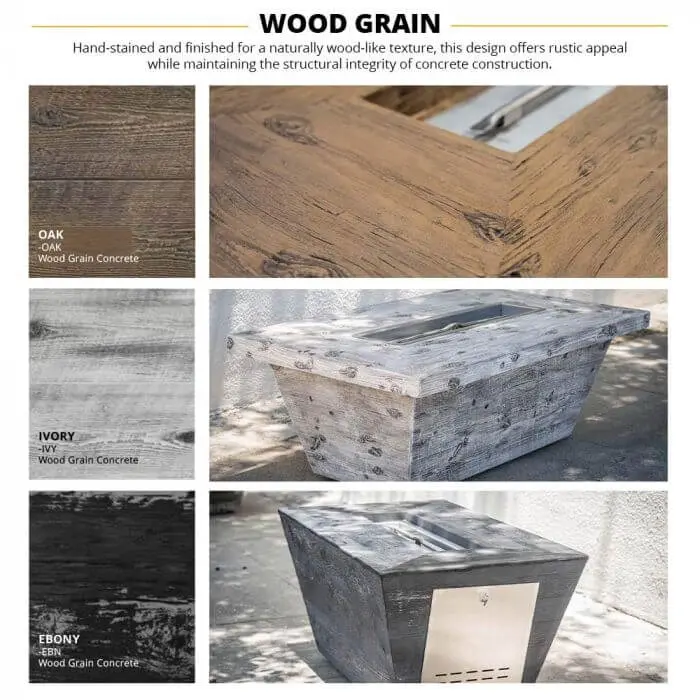

The Cazo Fire & Water Bowl in Wood Grain Concrete

The Cazo Fire & Water Bowl comes available in 2 sizes (24″,32″) and has multiple finish options (Wood Grain Concrete, Hammered Copper & Powder Coated Metal)

Cazo 24″ Fire & Water Bowl Specs

• Size: 24″
• Height: 8″
• Base: 12″
• Burner: 8″
• BTU: 45K
• Sugg. Glass: 20 lbs.
• Scupper: 8″
• GPM: 7-10

What is Included Standard?

Every Cazo Fire & Water Bowl, regardless of your ignition, fuel or color configuration comes standard with the following:

• Bowl
• Copper Scupper (¾” Inlet)
• Fire Pan
• Burner
• Whistle Free Hose
• Gas Orifice
• Mounting Bracket
• Lava Rock

Should You Upgrade to the Bullet Burner?

The patented tips on the bullet burner creates a taller flame while using less gas. The bullet burner isn’t for everyone as the flame projects upward out of the burner and looks less “natural” than standard burners. But if a taller, livelier flame is what you are after…the bullet burner is for you!

Ignition Options

MATCH LIT:

How it Works? – with match lit ignition the gas valve is turned on via a key (aka dante valve). You then safely light the burner with a kitchen lighter or match. There is no safety feature built in to shut the gas off if the flame goes out.

• Budget friendly
• No electricity or batteries needed

MATCH LIT WITH FLAME SENSE:

How it Works? – to light the burner you push the on/off knob to activate gas flow then safely light the gas coming out of the pilot with a kitchen lighter or match. With flame sense, the gas automatically shuts off if your flames blow out.

• Monitors flame balance
• Adds extra layer of protection if flames blow out
• Adjustable flame height
• No electricity or batteries required

ELECTRONIC IGNITION (LOW VOLT):

How it works? – low voltage (12 VAC) electronic ignition is required for fire features within 5 feet of water. Electronic ignition has all the safety features built in and enables you to control your fire feature remotely. Benefits of low volt electronic ignition:

• Self-monitoring safety features
• Perfect for Pool Automation
• Convenient Control Options
• Transformer included standard to achieve low voltage

Control Options for Electronic Ignition

1. Portable On/Off Electronic Remote – outdoor rated, includes wireless remote and receiver
2. Wireless Remote Control System – includes wireless on/off remote control & receiver, plus outdoor rated electrical box with mounted switch.
3. 1-Hour Dial Timer – includes outdoor rated electrical box and timer with dial. 60 mins max runtime
4. 1-Hour Button Timer – includes wall mounted timer with 10 min, 20 min, 30 min, 60 min and HOLD timer options
5. 1-Hour Gas Timer with E-Stop – includes wall mounted 60 min dial timer & emergency stop button

Resources

INSTALLATION MANUALS:

• Match Lit Ignition
• Match Lit with Flame Sense Ignition
• Electronic – Low Volt (12V)

SPEC SHEET: Cazo Fire & Water Bowl – Wood Grain Concrete | 24″
